Bandwidth Throttling

Scroll Prev Top Next More

Each service in VPOP3 can have Bandwidth Throttling enabled. This restricts how much of your connection speed is used by the VPOP3 service.

This may be useful if you have a slow Internet connection and you want to limit VPOP3 so that it does not use all of the available bandwidth.

In VPOP3 Basic, basic bandwidth throttling is available. In VPOP3 Enterprise, there are more options including bandwidth pools to limit several connections' bandwidth usage at once.

For each Service, on the General tab there's an option called Bandwidth Throttling. This option sets how VPOP3 limits bandwidth usage.The default setting is No Limit meaning that bandwidth isn't limited by VPOP3.

In VPOP3 Basic there are two options: No Limit and Custom. In VPOP3 Enterprise you have those two options as well as Bandwidth Pool options.

Let’s look at the two basic settings first

No Limit

The No Limit option, as the name suggests, means that there is no bandwidth limiting.

Custom

The Custom option lets you specify a maximum speed (in bytes/second) for each connection using this service. So, if you set the custom value for the IMAP4 service to 100000, then each connection using the IMAP4 service will be limited to 100,000 bytes per second (800,000 bits per second). If the server is handling 10 IMAP4 connections at once, then each connection is limited to 100,000 bytes per second, so the total throughput could be up to 1,000,000 bytes per second.

For many bandwidth control operations this has limited use, because you may want to throttle the IMAP4 service to only use so much bandwidth regardless of how many connections there are. This is where Bandwidth Pools come into play.

Bandwidth Pools

To have access to Bandwidth Pools, you need to have VPOP3 Enterprise.

Bandwidth pools are configured in Settings → Misc SettingsBandwidth Pools. VPOP3 supports 1000 bandwidth pools. By default, they are all configured to allow unlimited bandwidth.

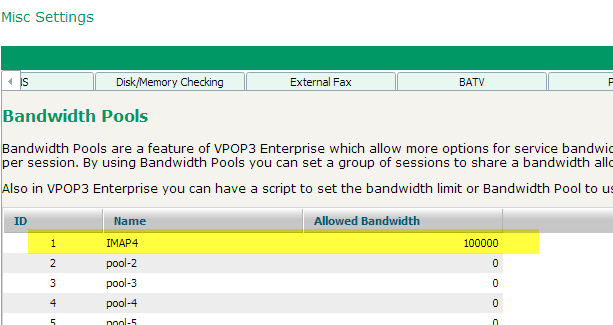

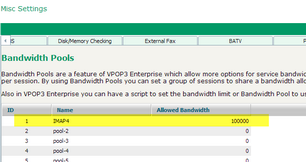

You can easily assign a bandwidth limit to a pool by double-clicking on the ‘Allowed Bandwidth’ column for the pool you want to edit, and typing in the new bandwidth limit (in bytes per second). You can also assign a name to the bandwidth pool for your future reference.

bandwidth21_zoom50

Now, you could go to the IMAP4 service settings, and choose Bandwidth Pool 1 to be the bandwidth limit for the IMAP4 service. When you have done that, then all the connections using that service will share the bandwidth from the chosen bandwidth pool.

If you wish, you could also choose Bandwidth Pool 1 to be the bandwidth limit for the POP3 service as well. Now, the bandwidth pool allowance is shared among all POP3 and IMAP4 connections.

Advanced Pools

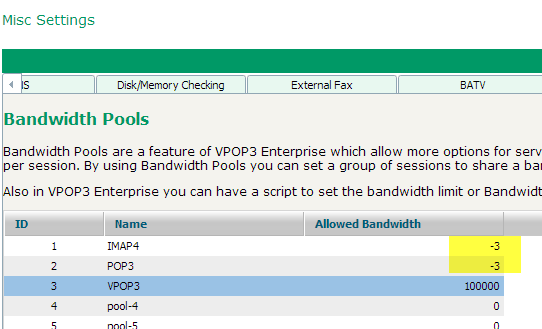

If you wish, you can create ‘nested pools’. To do this, use negative numbers as the pool bandwidth limit where the negative number indicates the ‘parent’ pool. For instance, you could create settings as below. In this case, the POP3 and IMAP4 pools both share the VPOP3 pool limit. This is achieved by looking at the ID of the VPOP3 pool (3), and making it negative, and setting that as the limit for the ‘child’ pools.

bandwidth3_zoom50

The POP3 and IMAP4 pools are not copies of the VPOP3 pool, but share the pool, so all users of the POP3 and IMAP4 pools would be limited to 100,000 bytes per second in total.

In itself this does not give you any functionality you would not otherwise have (you could simply set both the POP3 and IMAP4 services to use the VPOP3 pool), but it does mean that in the future, you could change the limits from the Bandwidth pool settings without having to edit the services individually. This becomes even more useful when you come to use bandwidth scripting,

Bandwidth Scripting

The real power of the bandwidth limits becomes apparent when you can use scripting (only in VPOP3 Enterprise) using the Lua programming language.

The reference guide for the bandwidth scripting is in this article, but here are some examples and ideas. The reason we have used scripting rather than discrete settings is that scripting would allow the feature to be used in ways we may not have considered yet.

Every time a new connection starts to a VPOP3 service, or the ‘state’ changes (eg someone logs in), then a Lua function is called. This function is called ‘GetBandwidth’ and is stored in the ‘bandwidth.lua’ script (managed through the Scripts settings page). This function is passed several parameters, such as details of which service the connection is for, user details (if any), client IP address, and so on. Then, the function can return a value to indicate the bandwidth limit to be used:

0 = no limit

1 to 999999999 = limit for this connection (in bytes per second)

-1 to -1000 = bandwidth pool to be used (as a negative number – "-1" = bandwidth pool 1, etc)

As you can probably imagine by now, there are many ways this can be used. For instance:

you could give some people a different bandwidth limit from other people,

external IP addresses could have a low limit, while internal IP addresses are unlimited,

you could use other Lua function to do things such as check the current time, and give different bandwidth limits based on the time of day (however, note that the function is only called at the start of the connection, not periodically while the connection is active).

Examples

External IP addresses are limited

function GetBandwidth(params)

-- pool '1' is set to the limited pool

-- This function either returns unlimited for local users (192.168.x.y), or '-1' to assign external users to pool 1

  if string.find(params["clientip"], "^192%.168%.") then

    return 0; -- unlimited

  else

    return -1; -- use pool 1

  end;

end;



Most users are limited, but the boss isn’t

function GetBandwidth(params)

-- pool '1' is set to the limited pool

-- This function either returns unlimited for connections from 'theboss', or '-1' to assign other users to the limited pool

  if params["username"] == "theboss" then

    return 0; -- unlimited

  else

    return -1; -- use pool 1

  end;

end;



External IP addresses are limited to different pools depending on time of day. The boss is always unlimited

function GetBandwidth(params)

-- pool '1' is set to the daytime limited pool

-- pool '2' is the evening limited pool

-- This function either returns unlimited for local users (192.168.x.y), or the boss, or '-1' or '-2' to assign external users to the relevant pool

  if string.find(params["clientip"], "^192%.168%.") or params["username"] == "theboss" then

    return 0; -- unlimited

  else -- limited users

    t = os.date("*t");

    if (t.hour >= 18) or (t.hour == 17 and t.min >= 30) or (t.hour < 8) or (t.wday == 6) or (t.wday == 0) then

      return -2; -- use pool 2 after 5:30pm or before 8am or at weekends

    else

      return -1; -- use pool 1 at other times of day

    end;

  end;

end;
